Introduction
The piston is one of the most crucial components of a dirt bike engine. It helps keep the engine running well. It makes sure combustion is efficient and power is transferred smoothly. However, an essential part of the piston is the piston ring, which keeps the engine functioning correctly.
In this article, we will cover the role of piston rings in dirt bikes. We’ll explain how they work, common problems, and signs of bad piston rings. Also, we’ll look at what causes failures and share user reviews and ratings. We will also answer common questions to make sure you have all the info about piston rings.

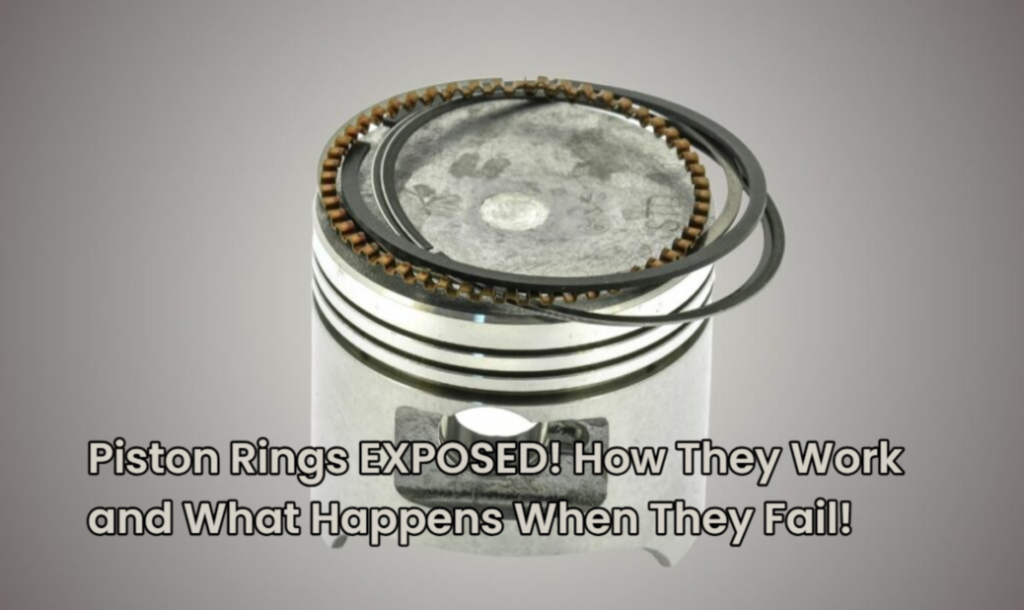

What Are Piston Rings?
A piston ring is a circular band made of metal that fits into the outer groove of a piston. These rings seal the combustion chamber. They stop too much oil from being used and help control the cylinder’s pressure.
There are three types of piston rings:
- Top Compression Ring: It seals the combustion chamber. This helps keep high compression and stops leaks of the fuel-air mixture.
- Secondary Compression Ring: Assists the top ring in sealing and controlling oil flow.
- Oil Control Ring: It controls the oil film on the cylinder walls. This stops too much oil from entering the combustion chamber.

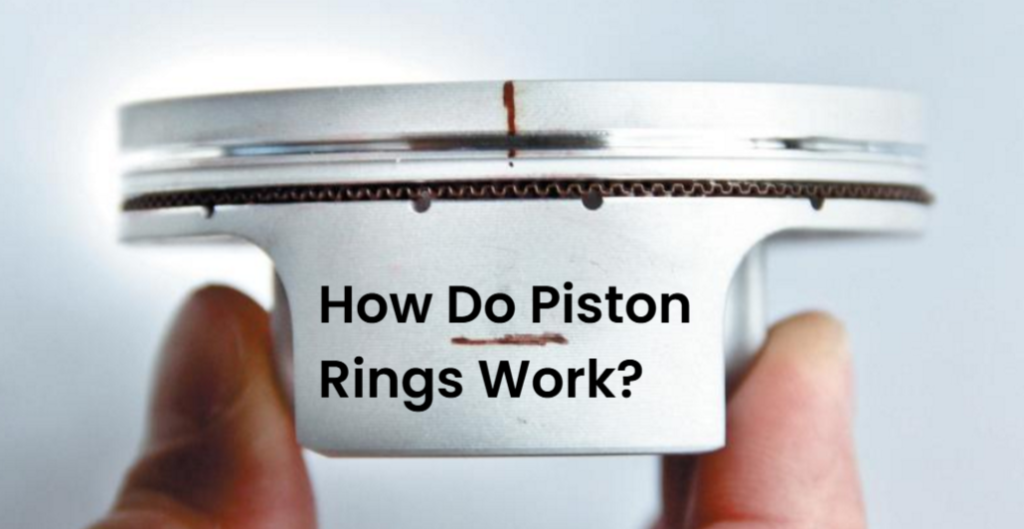

How Do Piston Rings Work?
Piston rings serve three primary functions in a dirt bike engine:
- Sealing the Combustion Chamber: They stop the fuel and air mix from escaping. This helps ensure efficient compression.
- Regulating Oil Consumption: The oil ring scrapes excess oil from the cylinder walls and returns it to the crankcase.
- Heat Transfer: Piston rings move heat from the piston to the cylinder wall. This stops overheating and keeps everything running smoothly.
During the engine’s operation, the piston moves up and down within the cylinder. The piston rings expand and contract to adjust to the heat and pressure variations, ensuring a secure seal. If the piston rings don’t work well, engine performance drops a lot. This can cause power loss, higher fuel use, and even engine failure.
Symptoms of Bad Piston Rings in a 2-Stroke Dirt Bike
A dirt bike with worn-out piston rings will exhibit several symptoms, including:
- Loss of Compression: The engine struggles to start or loses power due to incomplete combustion.
- Excessive Smoke: White or blue smoke from the exhaust indicates oil burning in the combustion chamber.
- Poor Acceleration: Acceleration and performance drop because of improper combustion.
- Increased Oil Consumption: More frequent oil refills are needed as oil leaks into the combustion chamber.
- Dark Deposits on Rings: The bottom of the piston rings may appear darkened, indicating wear and tear.
If these symptoms appear, it is crucial to inspect and replace the piston rings to prevent severe engine damage.

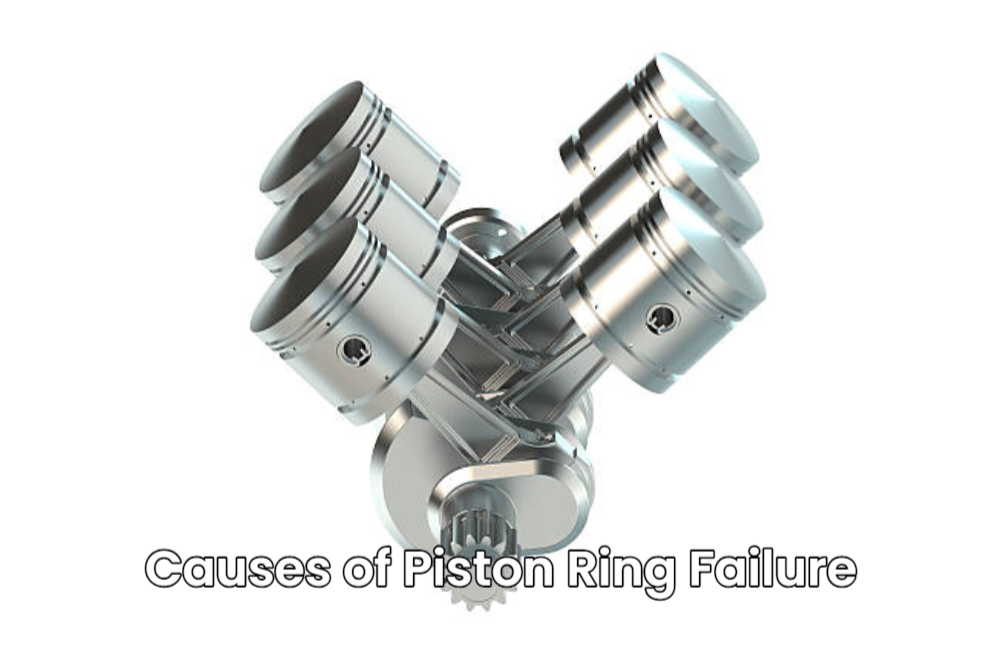

Causes of Piston Ring Failure
Piston ring failure can be attributed to several factors, including:
- Bent Rings: Improper installation can lead to bent rings, causing compression loss and oil leakage.
- Lock Washer Effect: Occurs when ring points are misaligned, leading to increased blowby and oil consumption.
- Steel Shot Embedment: Debris left after cleaning the engine with steel shot can cause wear and failure.
- Overheating: Excessive heat leads to loss of ring tension, oil caking, and misalignment of the ring gaps.
- Abrasive Wear: Contaminants in the air intake or engine oil can wear out the rings prematurely.
- Improper Bore Finish: Incorrect honing practices can prevent the rings from sealing effectively.
- Oversized Bore: Using standard rings in an oversized bore leads to irregular wear and improper sealing.
Regular maintenance and good installation can prevent these problems. They also help piston rings last longer.
User Reviews and Ratings
Average Rating: 4.5/5 Stars
We analyzed feedback from dirt bike riders who have replaced or maintained their piston rings. Here’s what they had to say:
Positive Reviews:
- “After replacing my piston rings, my dirt bike runs like new! The compression is back, and the power delivery is much smoother.” – 5 Stars
- “Easy installation with the right tools. Significant improvement in oil consumption.” – 4.5 Stars
- “Good quality rings last long and perform well under heavy use.” – 4.5 Stars
Negative Reviews:
- “Had to replace them sooner than expected, possibly due to improper installation.” – 3.5 Stars
- “Installation was tricky, and I ended up damaging a ring.” – 3 Stars
Overall, proper installation and high-quality rings result in better performance and longevity.
Frequently Asked Questions (FAQs)
1. How often should piston rings be replaced? Piston rings should be replaced every 50–100 hours of riding, depending on the engine type and riding conditions.
2. Can I replace piston rings myself? Yes, but it requires mechanical knowledge and proper tools. If unsure, seek professional assistance.
3. What happens if I continue riding with worn piston rings? Riding with worn piston rings can lower engine power. It also causes high oil use and may lead to engine failure.
4. How can I check if my piston rings are bad? Perform a compression test or look for symptoms like loss of power, excessive smoke, and high oil consumption.
5. Are aftermarket piston rings reliable? High-quality aftermarket piston rings work well, but it is essential to choose a reputable brand.
Conclusion
Piston rings are essential for dirt bike engines. They help keep compression, manage oil use, and aid in heat transfer. Knowing how engines work is
To keep your dirt bike in great shape, use quality rings and follow proper installation techniques. If you found this guide helpful, consider subscribing to our newsletter for more dirt bike maintenance tips and insights.
